3 easy steps to use OneTouch Verio Flex® meter

Checking your blood sugar, step-by-step.

Set up your meter

Setting your date and time will help you accurately track all of your readings.

Follow the steps below to see how to set up your meter.

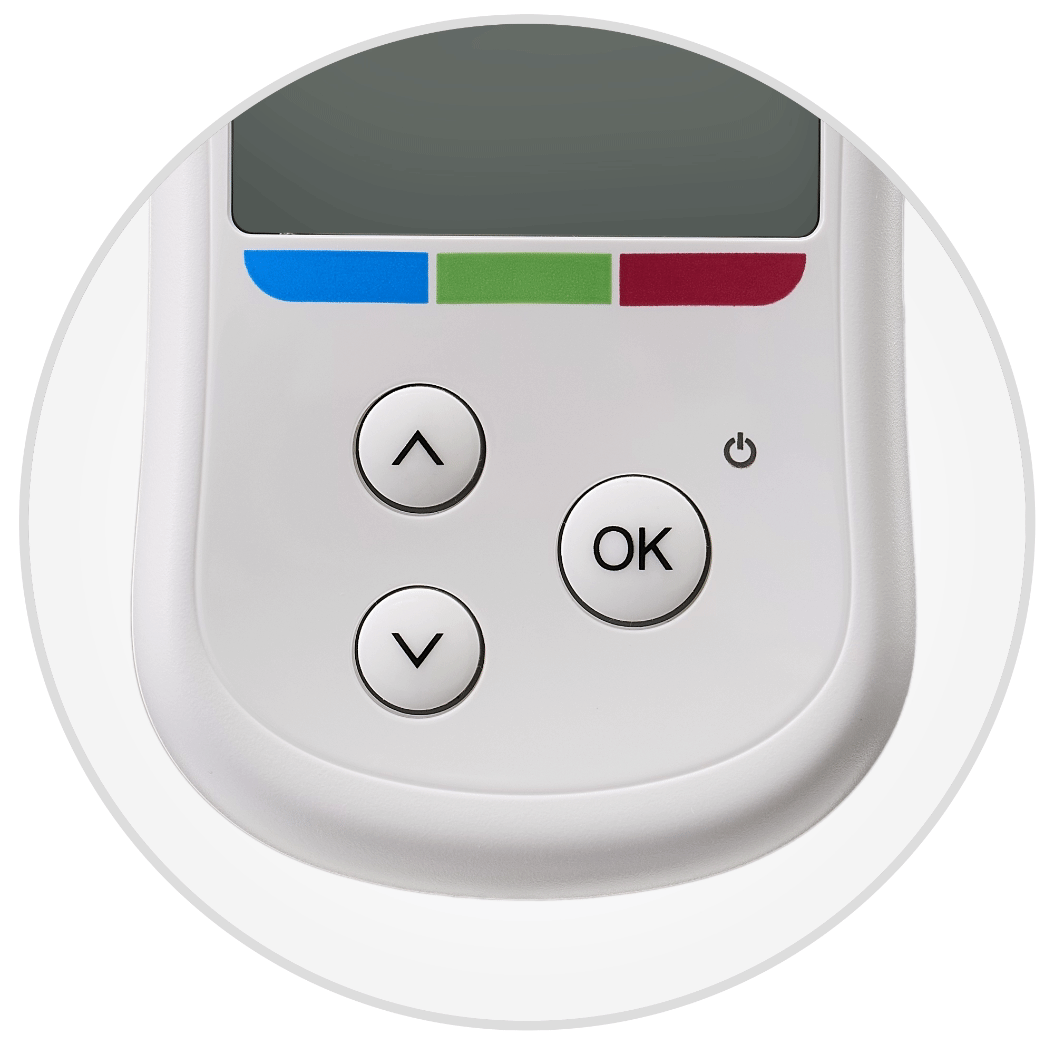

Turn on your meter.

HOLD the OK button until the start-up screen appears.

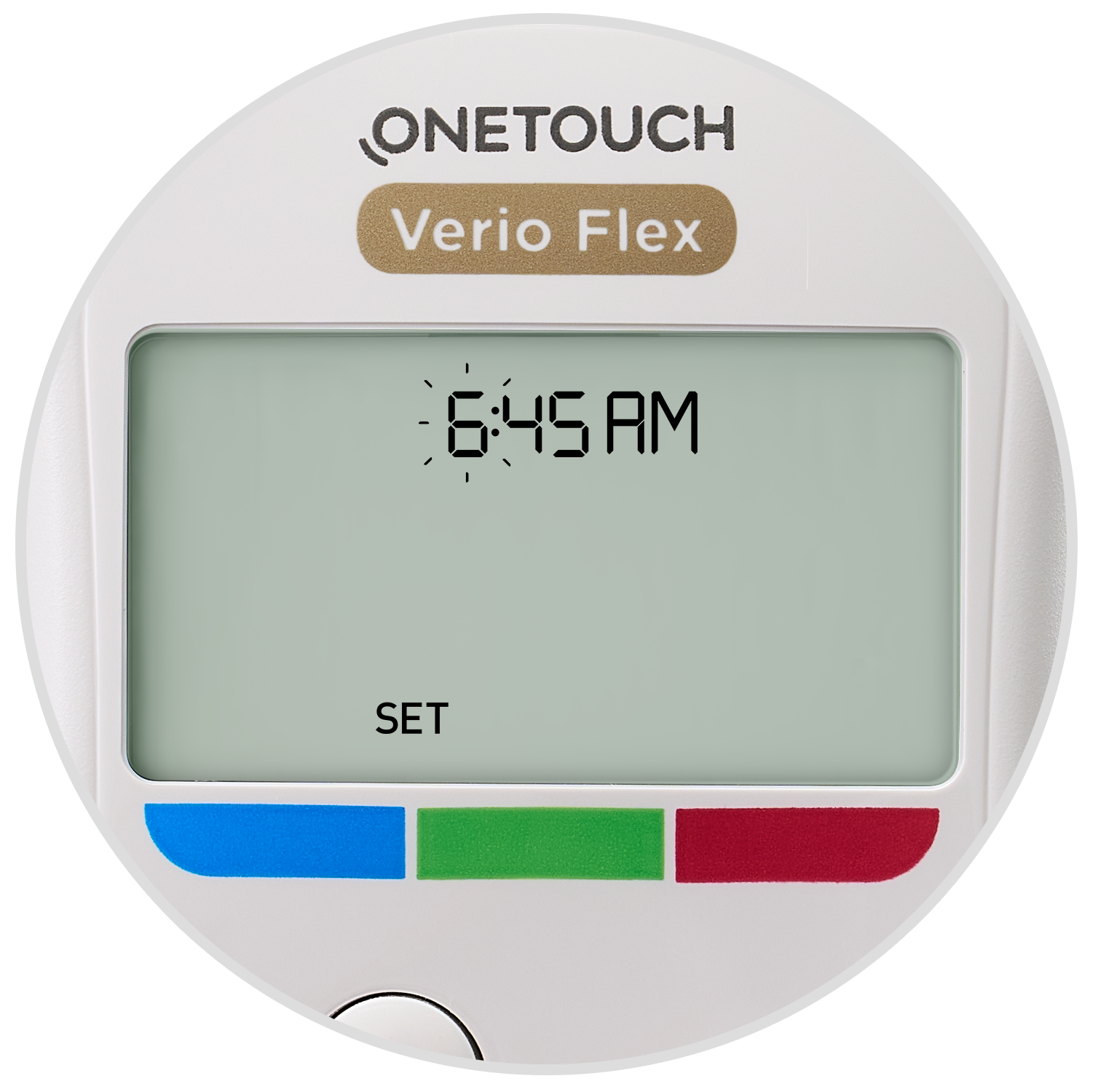

Set the time

The hour will flash. Click the up or down button and press OK to confirm. Then set minutes, AM/PM, year, month and day using the same process.

You’re ready to check!

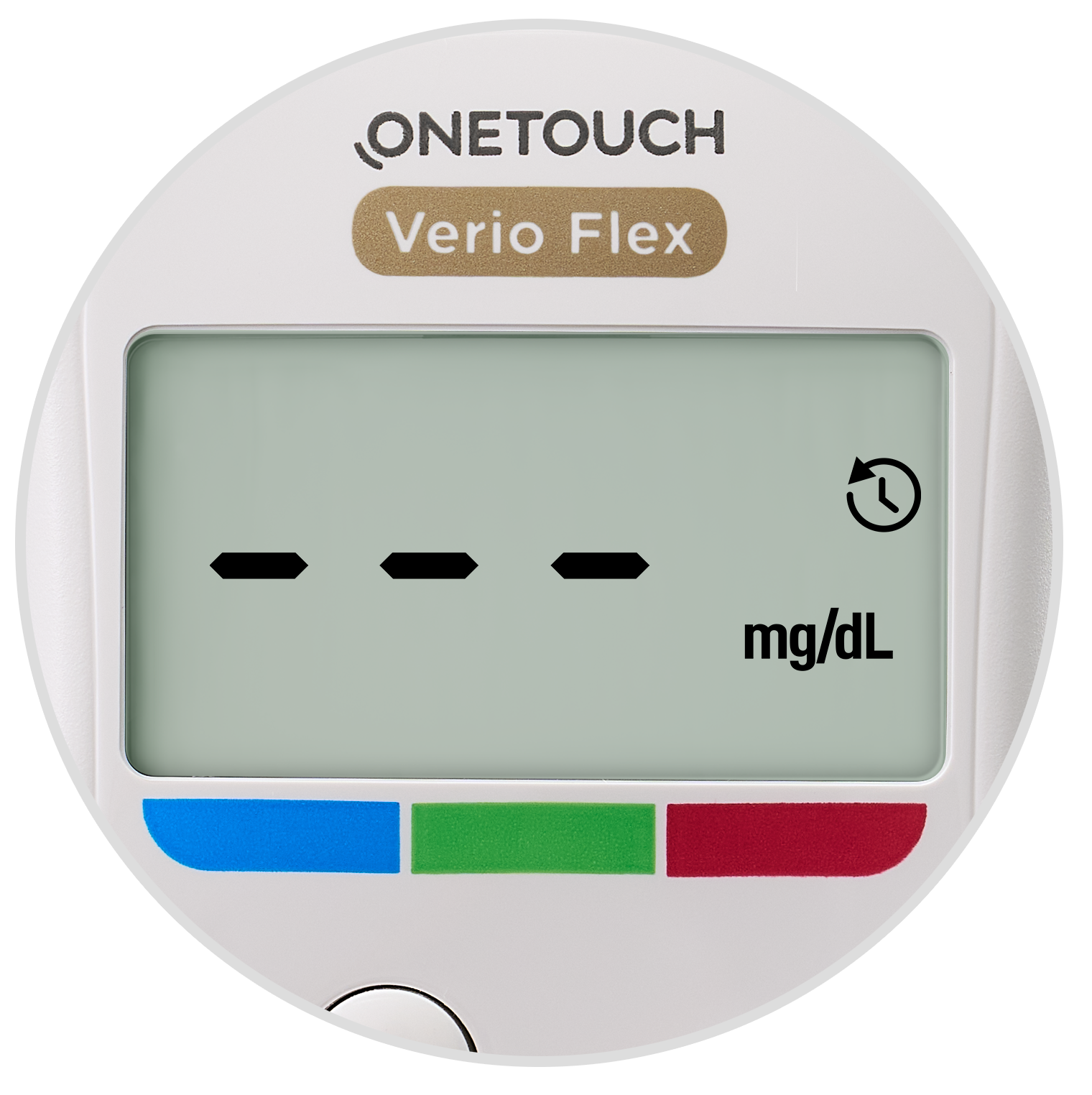

Your meter is ready when the screen with 3 dashes appears.

Want more details?
Refer to the Owner’s Booklet that came with your meter or click to read here.

You can also watch this video on how to set up your meter.

Prepare your lancing device

Before you check your blood sugar, let’s get everything ready.

Wash your hands before testing blood sugar

Wash hands

Use warm soapy water. Rinse and dry completely. Contaminants on the skin may affect readings.

Prep your lancing device

Be sure to use a new lancet for each blood check.

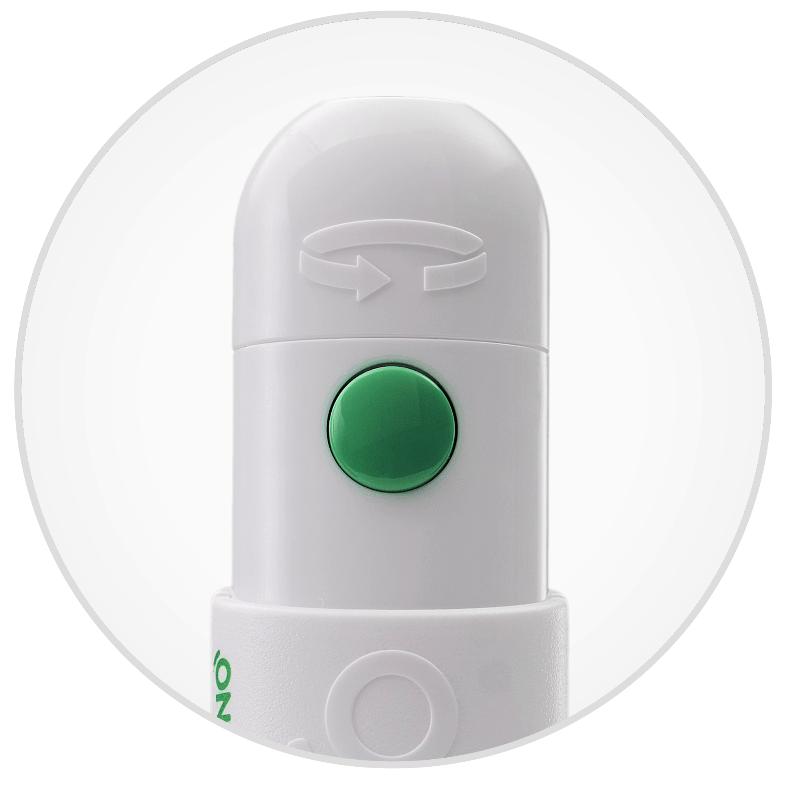

Remove lancing device cap

Lightly twist the cap at the end of the lancing device and pull it straight off.

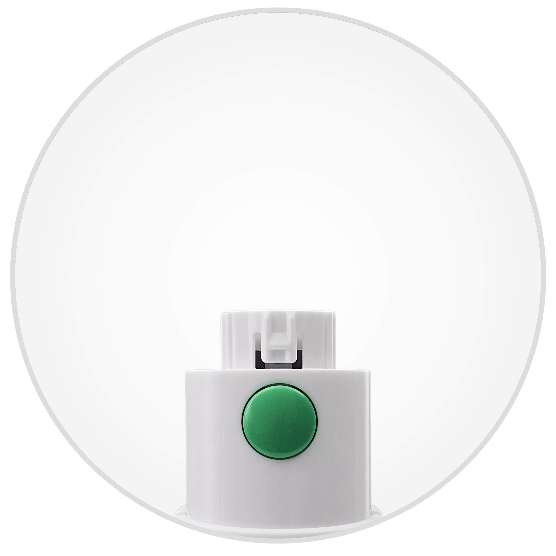

Insert Lancet and Remove Lancet Protective Cover

Insert lancet and remove protective cover

Push in a new lancet and twist to remove the protective cover. Save the cover for later.

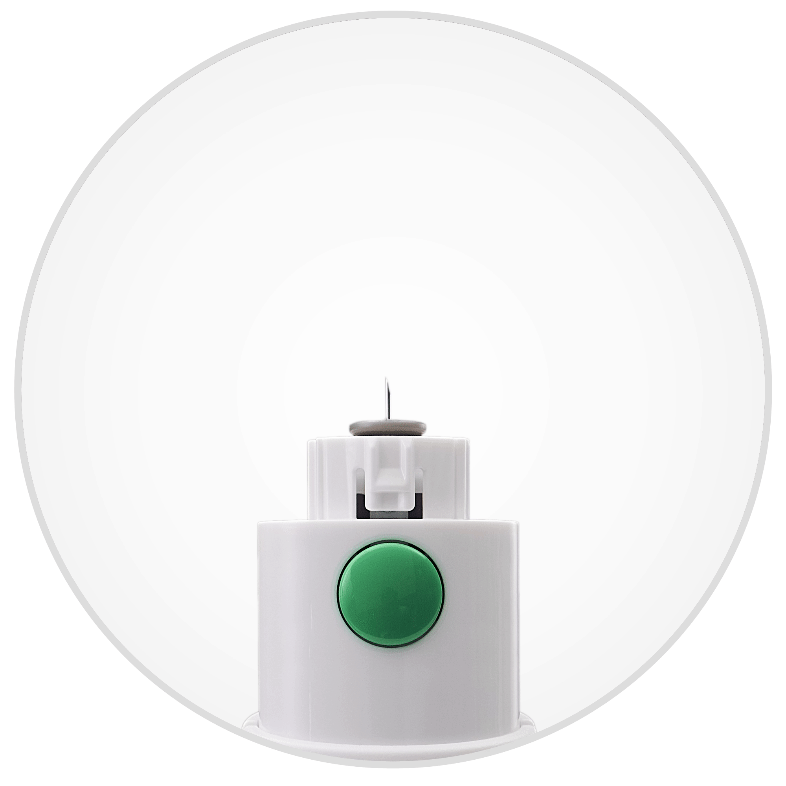

Replace lancing device cap

Place the white cap back on the lancing device.

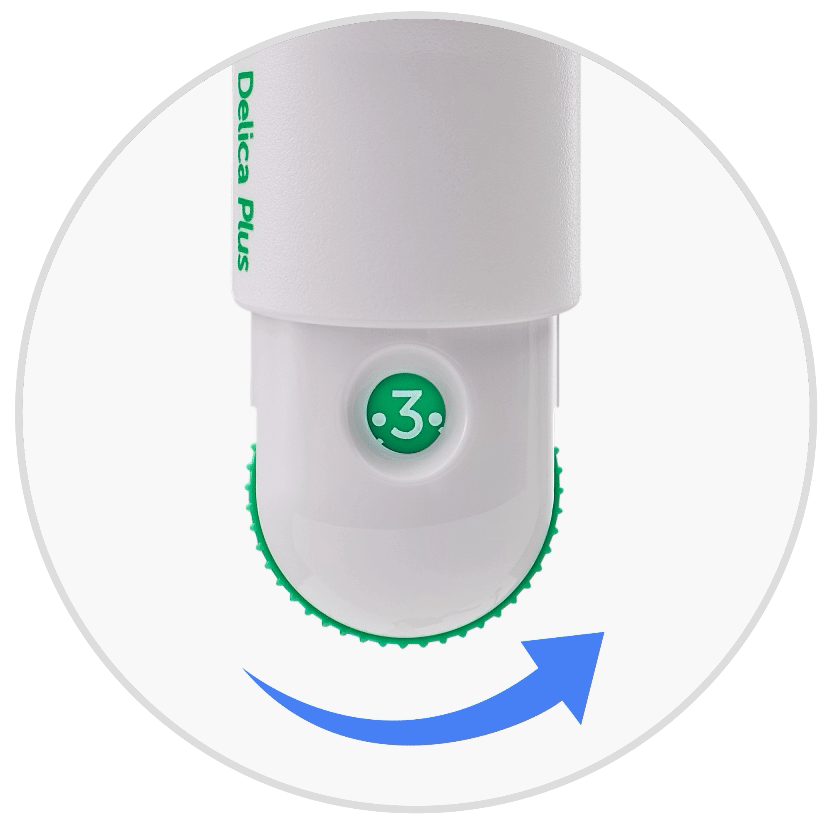

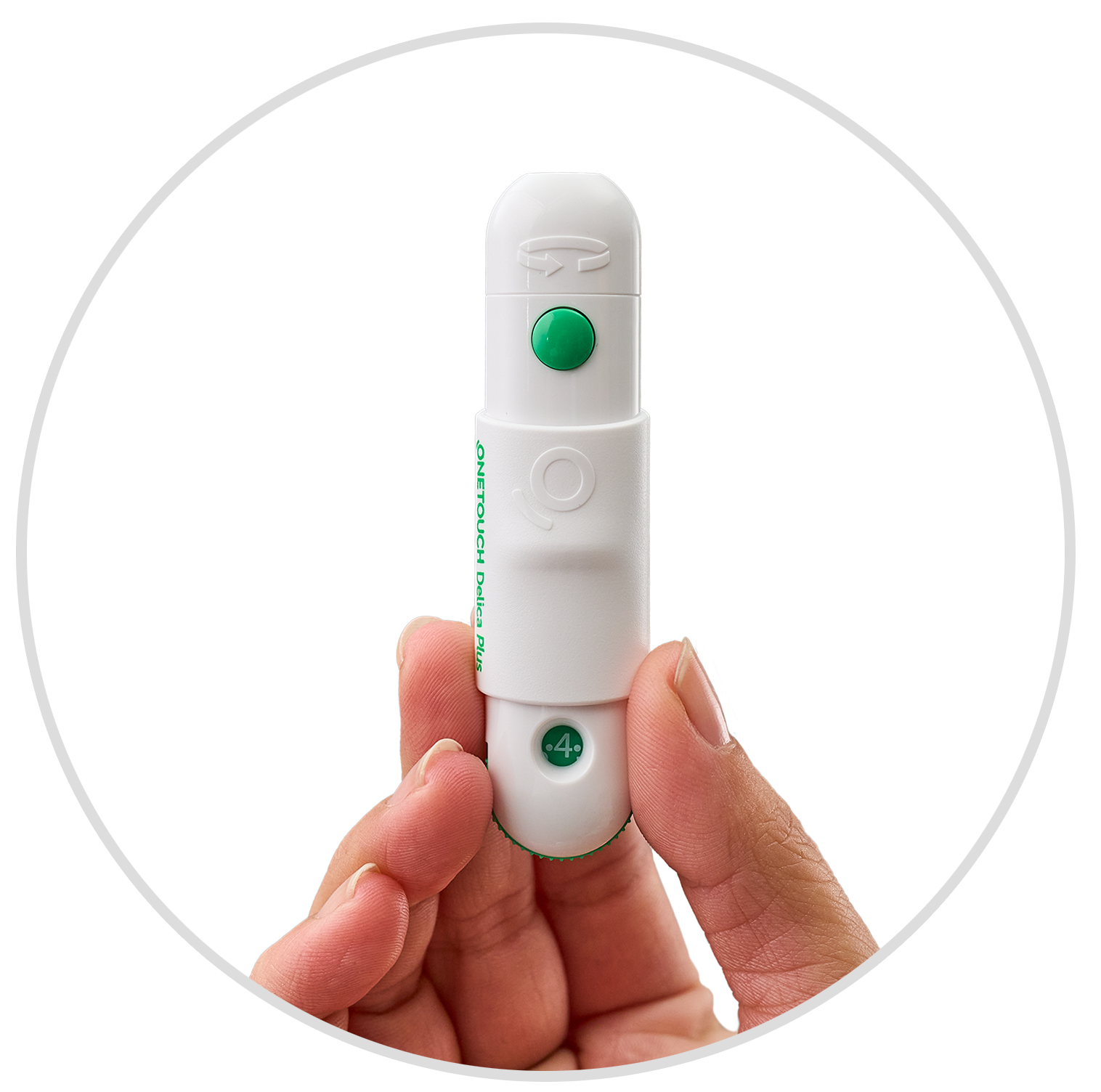

Adjust lancet depth

1 is the most shallow setting, 7 is the deepest. You may want to turn the green wheel to 4 for your first test. Then adjust in half setting increments from there.

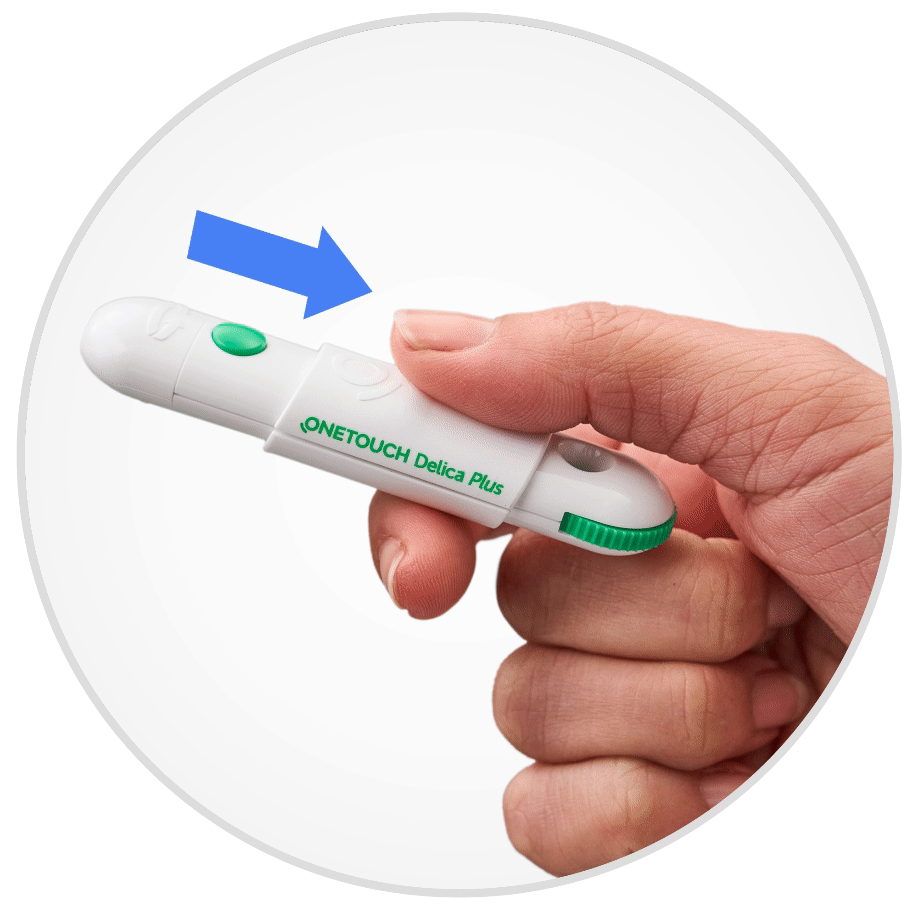

Cock device

Pull slider until it clicks. If it doesn’t, it’s probably already cocked.

Want more details?
Refer to the Owner’s Booklet that came with your meter or click to read here.

You can also watch this video on how to set up your lacing device.

Check your blood sugar

Before checking your blood sugar, read the steps below.

Use a new test strip

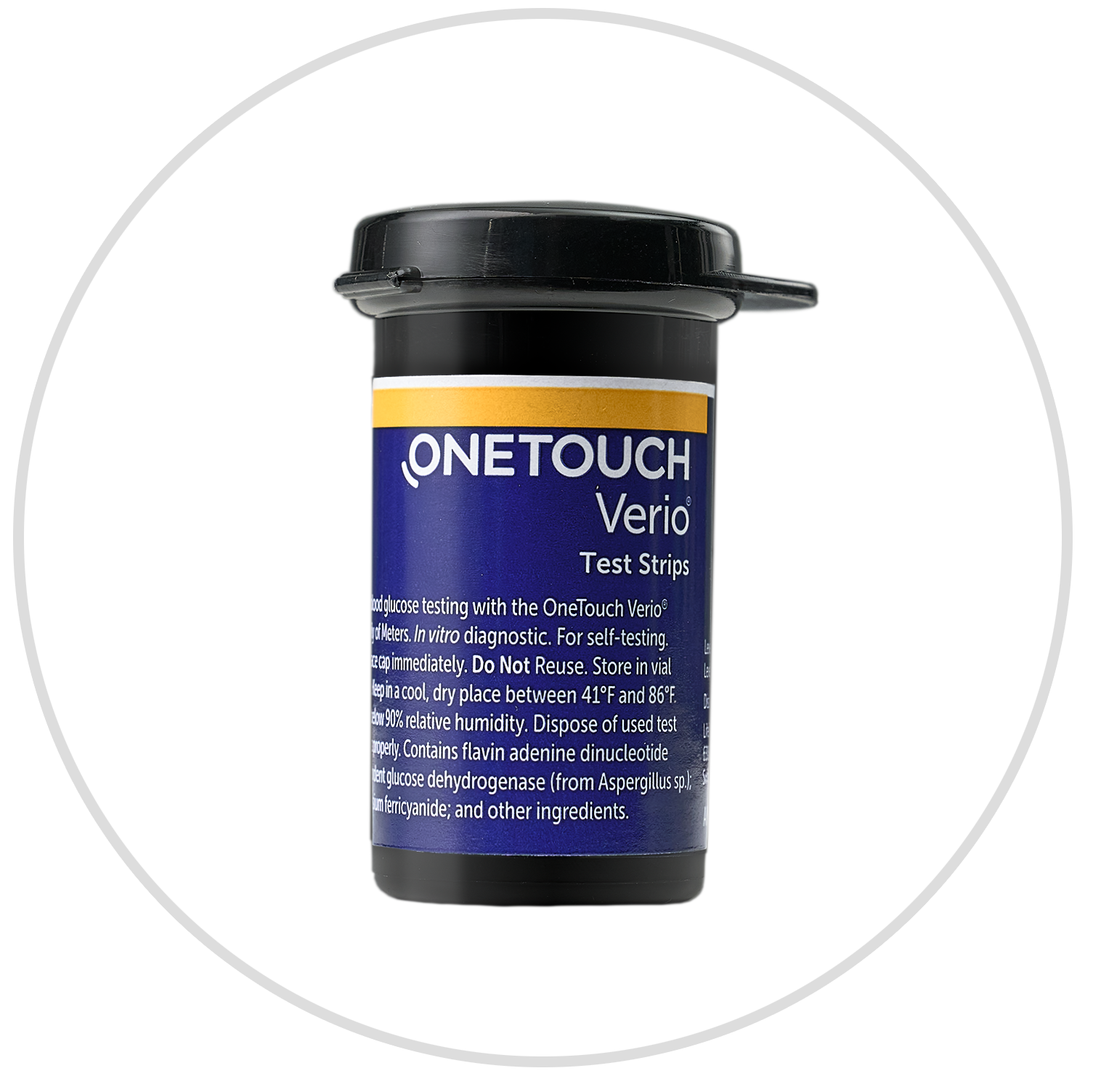

Remove a new test strip from the test strip vial, and tightly re-close the vial cap immediately to protect the remaining strips.

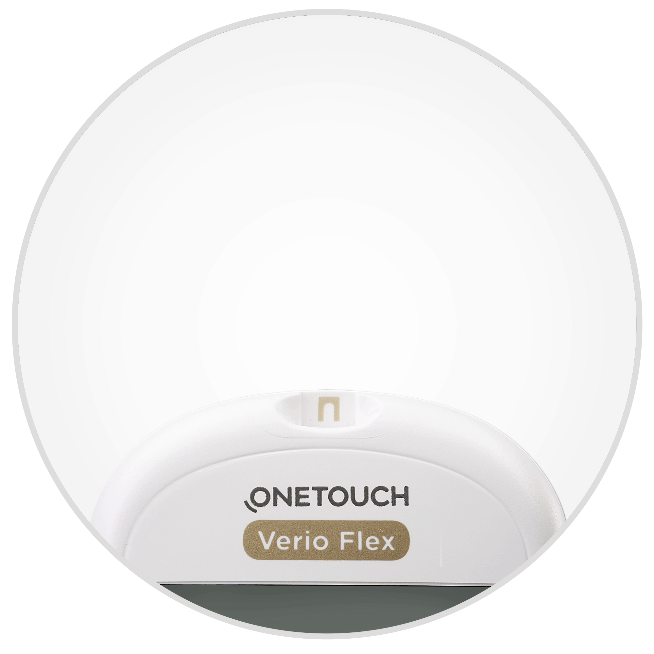

Insert test strip

Hold your meter with the screen facing you. Gently insert the strip with the gold side facing you and the two prongs pointing down.

You’ll see a flashing drop on the meter screen indicating the test strip has been inserted correctly and is ready to receive a sample.

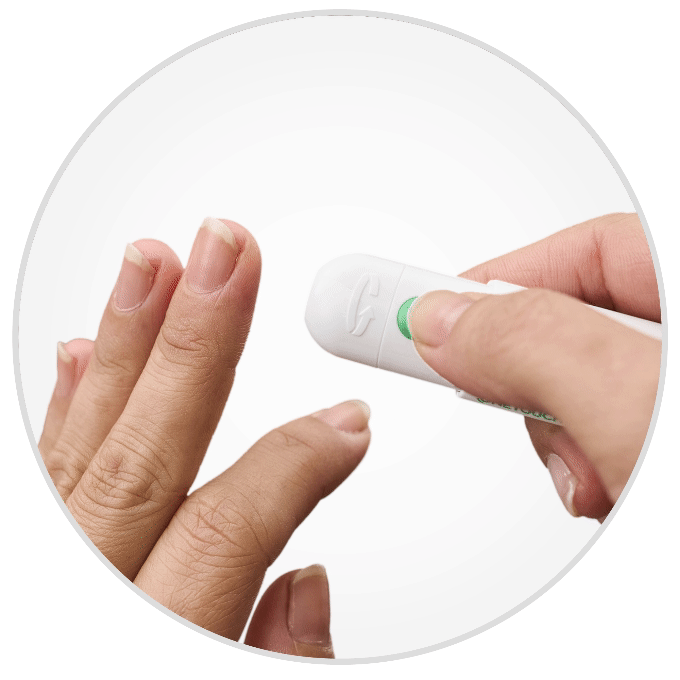

Lance finger

Massage your finger to get the blood flowing. Then lance the side of your fingertip by pressing the green button.

Form a round drop of blood

Squeeze your fingertip so the blood drop forms. Be sure to get a large enough drop to help prevent an error in your reading. If it smears, runs or dries, lance a new location.

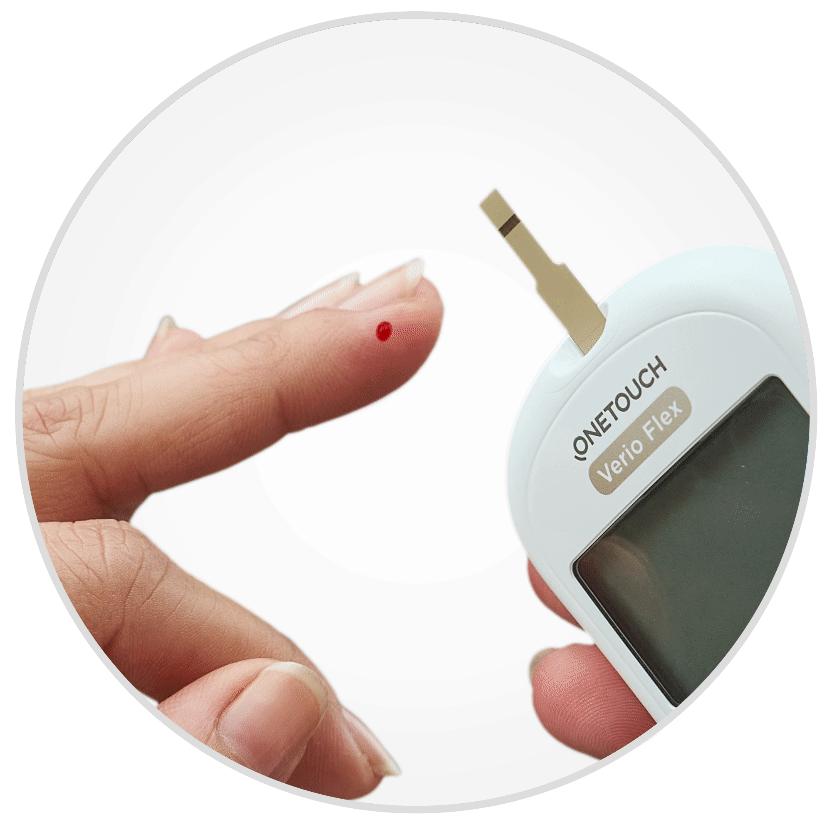

Apply to test strip

Apply blood drop to the visible channel on either side of the test strip, NOT the top.

IMPORTANT: After you insert the test strip, you have 2 minutes to apply the blood before your meter will automatically turn off. If this happens, press and hold the OK button to turn it back on and wait for the flashing drop to reappear before applying blood to the strip.

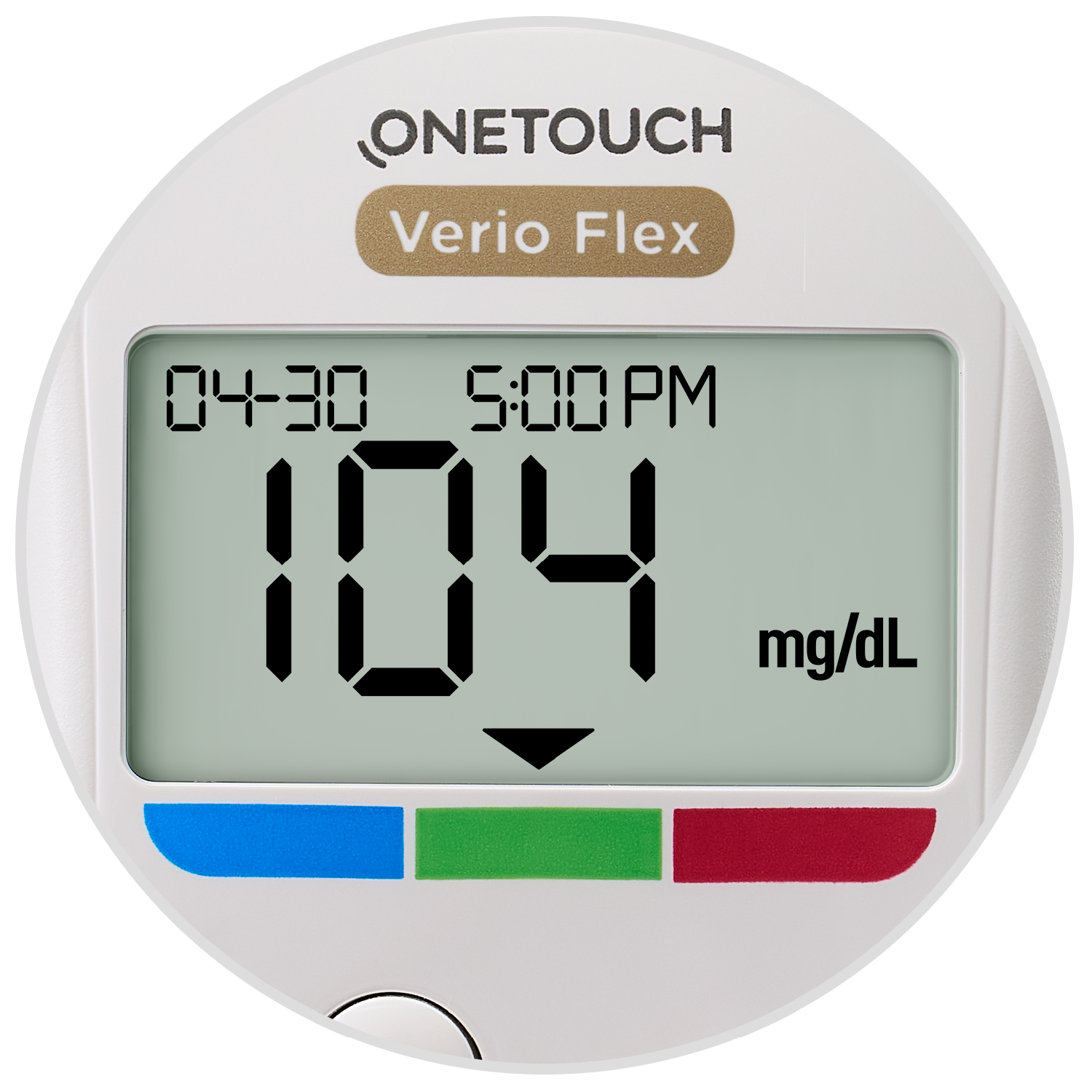

View Your Reading

A 5-second countdown will begin. Your result will appear along with a ColorSure^® arrow that will make it easy to tell if you’re high, low or in-range. The meter will store your 500 most recent readings.

Get an error code (ER)?
Don’t worry! Click the button to find your error code and see how to continue with a successful reading.

SEE ERROR CODES

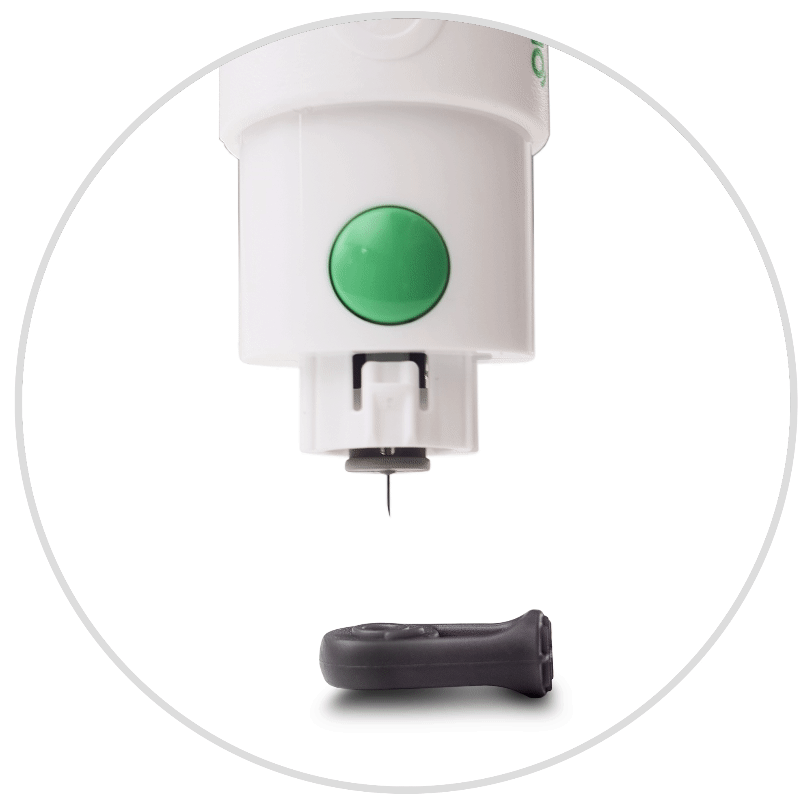

Remove used lancet

To safely remove the lancet, remove the lancing device cap and place the protective lancet cover flat on a hard surface. Push the lancet tip into the side of the cover.

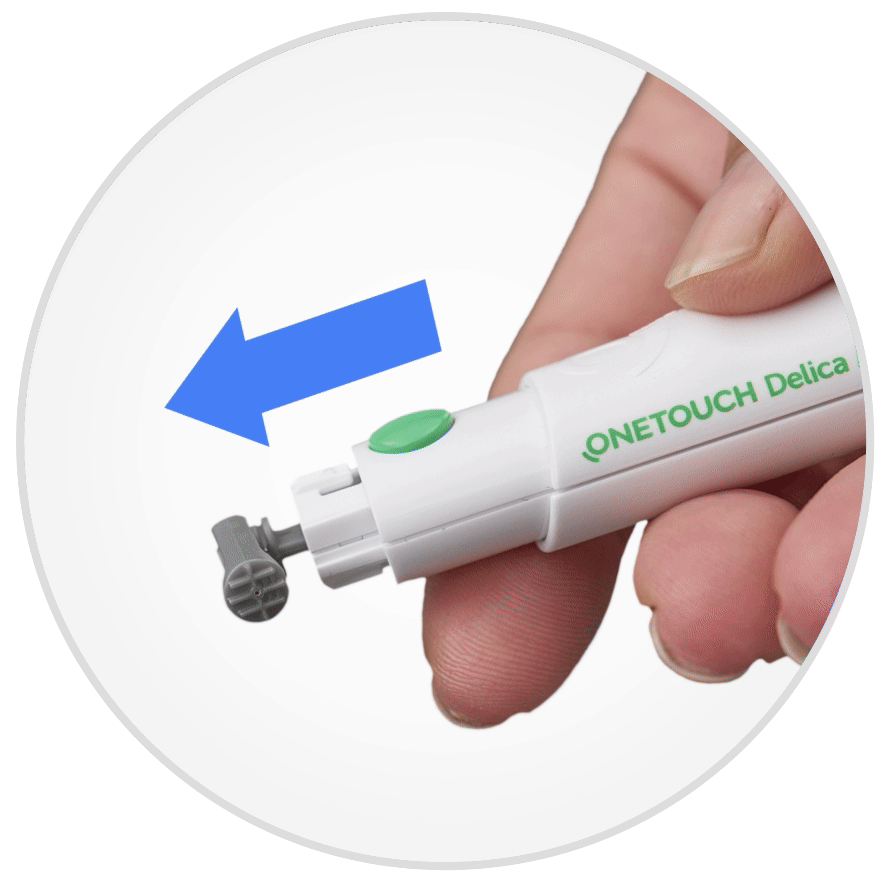

Eject the lancet

Push the slider forward to eject the used lancet.

You’ve just completed your first reading! Keep scrolling to download the OneTouch Reveal^® app to get more insights into managing your diabetes.

Want more details?
Refer to the Owner’s Booklet that came with your meter or click to read here.

You can also watch this video on how to check your blood sugar.

Download & connect the OneTouch Reveal^® app

This step is recommended. Automatic log-book tracking. Connection with your healthcare team. More insights into your health. Use the OneTouch Reveal^® app to get the most from your meter.

Download OneTouch Reveal^® and create an account

Watch this video or follow the steps below to see how to download the OneTouch Reveal^® app and create your account.

Open the app and create your account

Find the app on your phone and tap to open.

The first time you open the app, it will automatically walk you through the steps to set up your account, like entering your email and creating a password.

Want more details? To read more detailed instructions, click below.

APPLE SMARTPHONE
How to install the App
How to create your account

ANDROID SMARTPHONE
How to install the App
How to create your account

Pair your meter with the OneTouch Reveal^® app

Once you download the OneTouch Reveal^® app, you must pair it with your meter. This allows the app to record your results and give you personalized insights.

Watch the video or follow the steps below to see how to pair your meter with the app.

Meter selection on mobile app screen on phone

Open the app and pair your meter

The first time you use the app and sign in, it will prompt you to select your meter and pair it with the app. Follow the instructions in the app to pair the meter.

If you have already used OneTouch Reveal^®, you can add an additional meter by selecting MORE from the home screen, selecting “My Meters” and “Add a meter”.

Pairing complete on mobile app screen on phone

Pairing is complete!

When complete, the app will display the result of previous blood sugar readings.

Pairing not complete? Don’t worry, you can restart pairing using these steps:

1. In the OneTouch Reveal^® app, go to the MORE menu and select MY METERS.

2. Tap “Pair Another Device.”

3. Follow the walk-through in the app to pair the meter.

SEE iPHONE PAIRING STEPS SEE ANDROID PAIRING STEPS

Get the most from your meter

Sign up for OneTouch^® newsletters to get product updates, tips, education and inspiration for managing your diabetes. Delivered to your inbox, without overloading it.

Still looking for answers?
Get support via Live Chat during business hours and 24/7 through the OneTouch^®Assistant.
